SAUTER

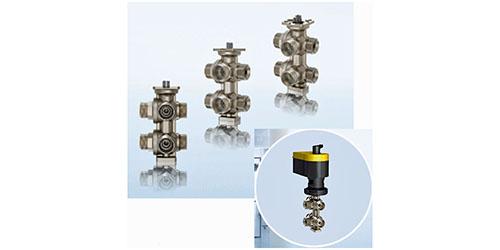

SAUTER has presented its new range of six-way B2KL ball valves, ideal for new projects or for rehabilitation projects. This new valve allows heating and cooling to be managed with a single individual regulation valve. It replaces up to four conventional valves and only needs one actuator, offering maximum flexibility and cost optimization.
Sauter's six-way ball valve offers a compact and precise alternative for fan coil control, hot and cold roofs in four-tube installations. With dual functionality, as a regulation valve or as a switching valve, conventional solutions may need up to four 2-way valves, four actuators and two controllers.
The six-way ball valve, available with nominal diameter DN15 and DN20, consists of two mechanically connected ball valves. The holes of the two balls are oriented perpendicularly, ensuring that the heating and cooling systems are always kept separate and do not leak from each other.
This new valve makes it possible to reduce the space required in the false ceilings, and also the materials and labor required for the assembly of valves, actuators, regulators and wiring.
